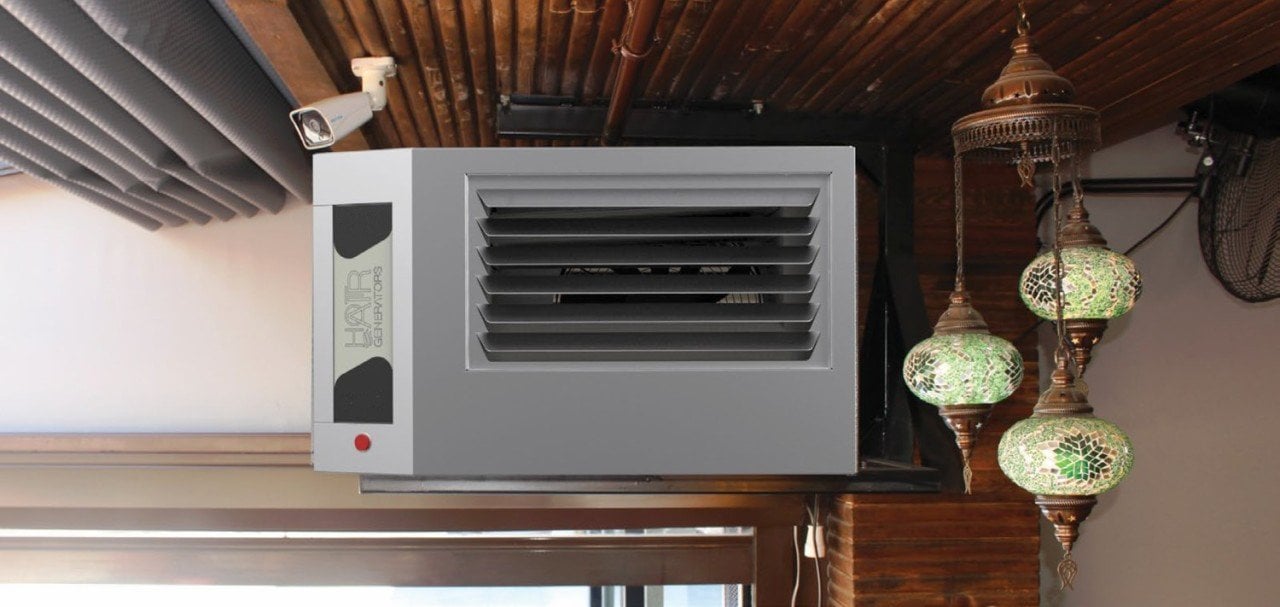

Shu 40 Hot Air Generator Features

Hot air generator is one of the most ideal solutions for heating systems of cafes, restaurants, winter gardens, factories, workshops, barns, coops, and manufacturing plants with large volumes where the ambient air needs to be heated. The hot air generator takes the ambient air and blows it hot through exchangers. It offers perfect heating solutions especially for businesses with low ceilings. Spaces heated with hot air generators are both more comfortable and more fuel efficient than classical heating systems. The air circulation created by blowing the heated air inside will create a more homogeneous heat distribution within the space, which will provide perfect comfort with much less fuel.

Hot air generator Natural gas or LPG, which creates heat by burning, is passed through heat exchangers with the help of a fan. As the hot burnt gases pass through the exchangers, they transfer their heat to the air absorbed from the environment. Thus, the flue gas that has fulfilled its function is thrown out of the chimney. The ambient air that receives the necessary heat from the flue gas is blown back into the environment by another fan. As the ambient temperature gradually increases, the heating performance also increases.

Hot air generator In the summer months, the device can be used as a fan by using it only in the fan position. Moving the ambient air provides freshness to the space.

Hot Air Generator;

• It has high efficiency
• It is long lasting
• Easy to install and operate
• It has electronic ignition
• It puts the environment into a regime in a very short time.
• It is economical
• Investment and operating costs are low compared to the need for boilers, piping etc.

Shu 40 Hot Air Generator Technical Specifications

HOT AIR GENERATOR MODEL : SHU40

Nominal Thermal Power: 1st Stage: 21.1 kW / 19,100 kcal/h

Stage 2: 36.7 kW / 31,560 kcal/h

Output Power: 1st Stage: 20.4 kW / 17,625 kcal/h

Stage 2: 34 kW / 29,250 kcal/h

Natural Gas Consumption: 1st Stage: 2.3 Nm³/h

Stage 2: 3.68 Nm³/h

Hot Air Generator Gas Connection: 1/2''

Number of Nozzles: 1

Hot Air Generator Inlet Pressure: Natural Gas (Max: 50-Min: 17 mbar)

LPG (Max: 50-Min: 25 mbar)

Hot Air Generator Electrical Supply: 230 V, 50 Hz

Air Flow: 3500 m³/h

Power: 210W

Fan Diameter: 400 mm

Sound Level: 60dBA

Width: 885mm

Height: 520mm

Depth: 695 mm

Weight: 60 kg

Hot Air Generator Heats Area: 225 m²

* TABLE VALUES ARE APPROXIMATE VALUES. MAY VARY DEPENDING ON THE ENVIRONMENT (INSULATION, AIR FLOW, ETC.)
