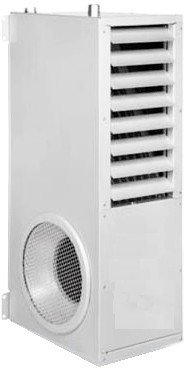

Rsa16 Hot Air Apparatus Features

Hot air heater is an effective method for heating large volumes produced for factories, warehouses, garages, workshops, garages, gyms, repair shops, hangars and supermarket heating systems.

The hot air unit is economical and has low investment costs. Despite having a very small volume, the units with high heating capacity are completely user-friendly. The unit, which takes hot water and steam heated in a heater such as a combi boiler, central heating boiler, steam boiler, absorbs and heats the ambient air with the high-efficiency special battery and fan it contains, and blows the heated air back inside. It is very easy to install.

It is important that the design of the hot air units is placed in a way that will allow the environment to be heated homogeneously and that the blowing condition and air flow will not have a negative effect on human comfort. The number of devices must be calculated and placed correctly in order to prevent the ambient temperature.

The heating power of the hot air units depends on the air difference and speed passing through the heating fluid and the battery. The higher the air speed and temperature difference, the higher the heating power of the hot air unit.

In radial fan models, it can reach 42,200 kcal/h heat power under 90-70 operating conditions, and in axial fan models, it can reach 24,400 kcal/h heat power.

Rsa16 Hot Air Apparatus Technical Specifications:

MODEL : RS 16

AIR FLOW: 1600 m³/h

HEATING CAPACITY: 10000 kcal/h

MOTOR POWER: 80 w

MOTOR VOLTAGE: 230 v, 50 Hz

FLUID PRESSURE LOSS: 8.2 kPA

* Water regime was selected as 90/70 ºC, Air inlet temperature was selected as 18 ºC.

Rsa16 Hot Air Apparatus Technical Dimensions:

A: 300mm

B: 920mm

C: 400mm
