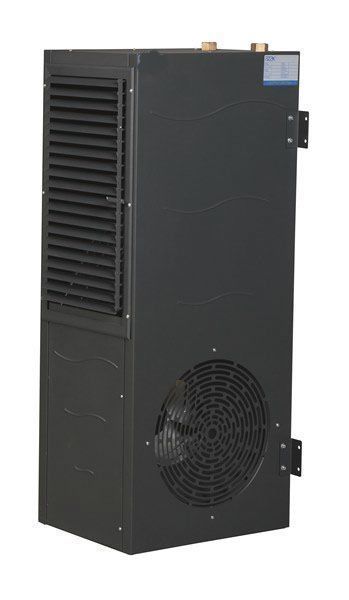

RDS24 Radial Fan Hot Air Apparatus Steam

Stock Code
BCDEHJNSKrds24
Warranty Period
24 Month
Price
43.668,69 TL + VAT
*Installments starting from 4.916,66 ₺!

Rds 24 Radial Fan Steam Hot Air Apparatus Prices (59.396 kcal/h);



Please call us for special discount requests for your project-based hot air unit purchases.

0 (332) 234 24 99

Note: Since hot air units are shipped according to the order, be sure to ask about the delivery time before ordering to avoid any problems!

Teknofer Click to Call

Rds 24 Radial Fan Steam Hot Air Apparatus Features;

 radial fan hot air apparatus prices

Rds24 Radial Fan Steam Hot Air Apparatus Technical Specifications;

Model : Rds 24

CAPACITY
Steam regime: 4 Bar
Air inlet: 10 °C
Air Outlet Steam regime: 4 Bar
Air inlet: 20 °C
Air Outlet
Watt kcal/h
69077 59396
°C
59
Watt kcal/h
63457 54563
°C
67



Air flow rate: 4024 m³/h

Fan diameter: 400 mm

Total fan power: 280 watts

Total noise: 65dB

Battery surface area: 8.6 m²

Battery pipe volume: 0.9 dm³

Circuit: 6 units

Inlet / Outlet: 35-28 mm

Hot Air Apparatus Dimensions:

Internal dimensions: 750 mm

(A): 400mm

(W): 1300mm

(C): 550mm

radial fan hot air apparatus dimensions



Be the first to comment on this product!
You can use the suggestion form to submit feedback on the product's price, image, description, or any other insufficient areas.
Thank you for your feedback and suggestions.
RDS24 Radial Fan Hot Air Apparatus Steam Rds24 The most ideal fan heater models for factory heating systems with hot water, excellent fuel saving with high efficiency. Hot steam heated by steam boilers is used for ambient heating by circulating in the apparatus batteries. BCDEHJNSKrds24 RDS24 Radial Fan Hot Air Apparatus Steam
